The Death of the SO-DIMM: How LPCAMM2 Saves Laptop Repairability Without Sacrificing 9,600 MT/s LPDDR5X Speeds

For twenty-five years, the portable computer industry revolved around a universal, comforting standard: the SO-DIMM (Small Outline Dual In-line Memory Module). Introduced in 1997 for SDRAM and iteratively scaled through DDR, DDR2, DDR3, DDR4, and DDR5, the SO-DIMM guaranteed that laptops remained modular, repairable, and upgradeable. If your workload expanded or a memory chip degraded, you popped open the bottom chassis plate, released two metal spring clips, and snapped in a denser module. But over the past five years, consumers watched in despair as laptop manufacturers systematically eradicated modular RAM in favor of permanently soldered memory chips. While consumer advocates rightly condemned this anti-repair trend as engineered obsolescence, electrical engineering hardware teams were trapped by an unforgiving physical reality: at high frequencies, the SO-DIMM is an electrical disaster.

As artificial intelligence processing, high-resolution video editing, and modern integrated graphics demanded data transfer speeds exceeding 6,400 MT/s toward 8,533 MT/s and 9,600 MT/s, the mechanical card-edge connector of the SO-DIMM introduced intolerable stub capacitance, parasitic inductance, and electromagnetic crosstalk that shattered high-speed signal integrity. Soldering Low-Power DDR5X (LPDDR5X) directly to the motherboard was the only way to deliver high-bandwidth, power-efficient memory. But just as the dream of modular laptop memory appeared permanently extinct, the JEDEC Solid State Technology Association formalized a revolutionary rescue: LPCAMM2 (Low Power Compression Attached Memory Module). By abandoning edge-finger slots in favor of a zero-insertion-force Land Grid Array (LGA) compression connector, LPCAMM2 restores 100% modular repairability while unlocking blisteringly fast 9,600 MT/s speeds across a single 128-bit dual-channel card. Here is the unvarnished engineering story of why SO-DIMM had to die, the mechanical physics of compression memory, and why LPCAMM2 is the most important laptop hardware breakthrough of the decade.

Advertisement


1. The High-Frequency Stub Cliff: Why SO-DIMMs Die Above 6,400 MT/s

To understand why SO-DIMM had to be eliminated, one must examine the high-speed electromagnetic physics of printed circuit board connectors. A standard DDR5 SO-DIMM utilizes a 262-pin edge-finger connector. When a module is inserted at a 30-degree angle and clicked down flat, the copper fingers on the module mate with gold-plated spring contacts inside the plastic motherboard socket.

At modest data rates (such as DDR4-3200 or early DDR5-4800), the wavelength of the electrical signal is relatively long compared to the physical dimensions of the socket pins. Signals pass through the mechanical interface with minimal distortion.

However, when memory transfer rates push past 6,400 MT/s toward 8,533 MT/s and 9,600 MT/s (operating at clock frequencies of 4.2 to 4.8 GHz), the physical geometry of the SO-DIMM socket turns into an acoustic and electromagnetic nightmare dominated by three physical phenomena:

  • Transmission Line Stub Capacitance: In an edge-finger socket, the metal pin extends several millimeters beyond the physical point of electrical contact. In RF and high-speed digital engineering, any unterminated trace branch acts as an open-circuit stub. Stubs introduce parasitic capacitance ($C_{stub} pprox 1.5 – 2.5 ext{ pF}$) that creates severe impedance discontinuities ($Z_0$ mismatch). High-frequency electrical wavefronts bounce off the end of the stub and reflect back into the main channel, causing destructive phase interference and obliterating the eye diagram.
  • Parasitic Lead Inductance: The elongated, curved metal pins of an SO-DIMM socket exhibit significant loop inductance (Lpin ≈ 1.5 – 2.8 nH). At 9.6 Gbps, the rapid rate of current change (di/dt) induces massive ground bounce and supply voltage ripple (Vnoise = L × di/dt), corrupting single-ended data strobes.
  • The LPDDR Form-Factor Incompatibility: Standard DDR5 memory requires high operating voltages (1.1V VDD) and consumes substantial idle power because its internal architecture lacks deep low-power sleep states. Modern ultra-portable laptops and AI PCs demand Low-Power DDR5X (LPDDR5X), which operates at 1.05V / 0.5V and features fine-grained Dynamic Voltage and Frequency Scaling (DVFSC). However, LPDDR5X’s ultra-sensitive, low-voltage transceivers physically cannot tolerate the high capacitive loading and stub reflections of an SO-DIMM socket.

Consequently, laptop manufacturers had no choice: to deliver thin, battery-efficient laptops with fast integrated memory, they were forced to solder LPDDR5X BGA packages directly onto the motherboard within 20 to 30 millimeters of the CPU socket. Modular upgradeability was sacrificed on the altar of signal integrity.

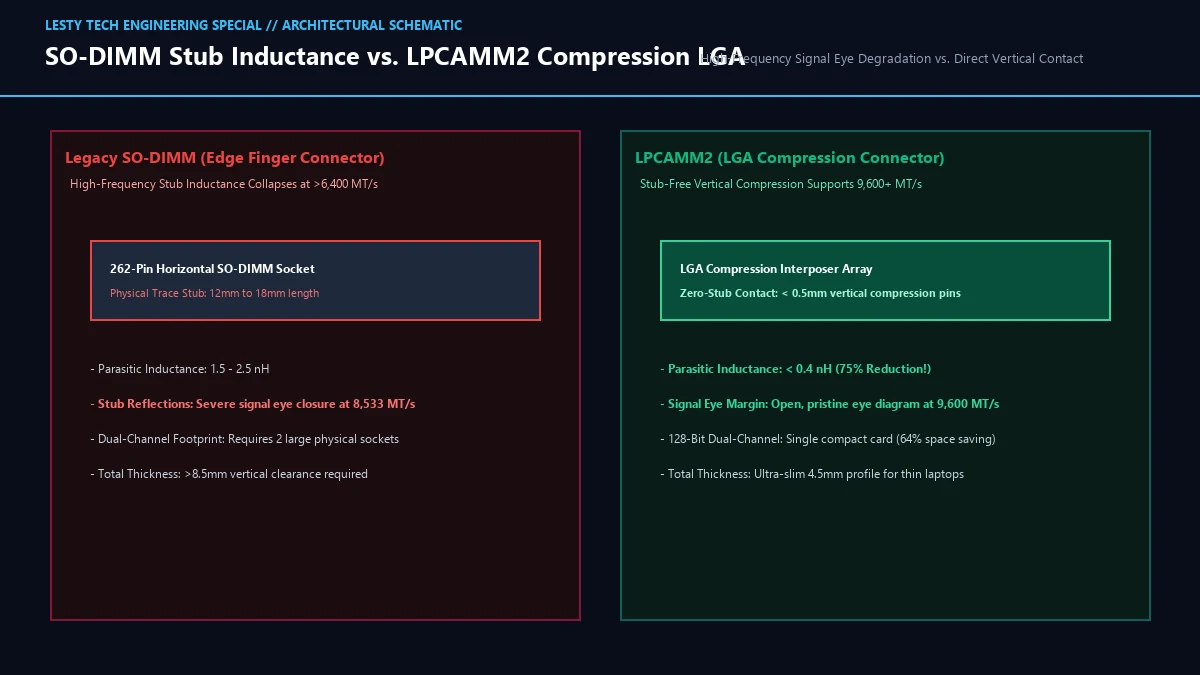

SO-DIMM High-Frequency Stub Capacitance vs. LPCAMM2 Direct Compression LGA Interconnect.
Figure 1: SO-DIMM High-Frequency Stub Capacitance vs. LPCAMM2 Direct Compression LGA Interconnect.

2. Enter LPCAMM2: The Land Grid Array Compression Revolution

Recognizing that soldered memory was alienating enterprise fleet managers, commercial buyers, and right-to-repair regulators, Dell Technologies engineered a radical alternative in 2022: the Compression Attached Memory Module (CAMM). Working in close collaboration with memory leaders Micron, Samsung, and SK Hynix, JEDEC formally adopted and standardized the architecture under JEDEC Standard JESD318 in late 2023, giving birth to LPCAMM2 (Low Power CAMM2).

LPCAMM2 completely eliminates card-edge fingers, plastic slide-in sockets, and insertion angles. Instead, it utilizes a Land Grid Array (LGA) compression interfaceanalogous to how desktop CPUs mount into motherboard sockets.

The mechanical assembly consists of three precision-engineered layers:

  1. The Motherboard Land Grid Array: The laptop motherboard features an array of flat, gold-plated copper contact pads arranged in a dense grid, completely flush with the surface of the PCB.
  2. The Compression Interposer: Sandwiched between the motherboard and the LPCAMM2 card sits an ultra-thin compression interposer (manufactured by interconnect specialists like Amphenol and Molex). The interposer houses hundreds of microscopic dual-beam phosphor-bronze spring contacts or conductive elastomeric columns. The vertical contact height is less than 0.5 millimetersvirtually eliminating transmission line stubs entirely.
  3. The LPCAMM2 Memory Module & Stiffener: The memory module itself is a compact, multi-layer printed circuit board (measuring approximately 78mm × 34mm) holding LPDDR5X DRAM dies. A rigid aluminum top stiffener distributes mechanical clamping force uniformly. The module is placed flat onto the interposer and secured using three or four standard Torx/Phillips M2 screws.

The electrical improvements are revolutionary. Because the compression interposer provides direct, vertical, stub-free pin contact, parasitic inductance collapses from 2.5 nH down to less than 0.4 nH (an 80% reduction). Stub capacitance is virtually eliminated ($C_{stub} < 0.2 ext{ pF}$). This pristine electrical channel allows LPCAMM2 to effortlessly drive LPDDR5X memory at 8,533 MT/s, 9,600 MT/s, and beyond with wide, open signal eyes and pristine jitter margins.

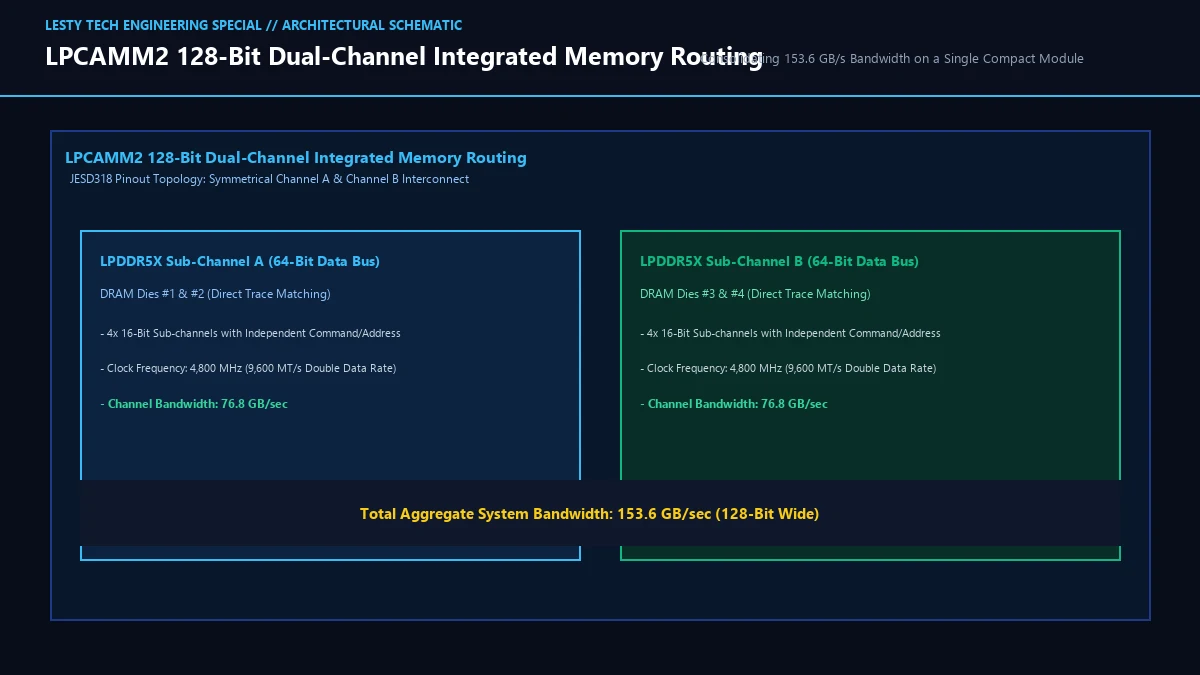

LPCAMM2 Single-Module 128-Bit Dual-Channel Routing Architecture and Motherboard Footprint.
Figure 2: LPCAMM2 Single-Module 128-Bit Dual-Channel Routing Architecture and Motherboard Footprint.

3. The 128-Bit Integration Miracle: Consolidating Two Sockets Into One

Beyond solving high-frequency signal integrity, LPCAMM2 delivers a monumental layout advantage that motherboard designers revere: native 128-bit dual-channel integration on a single module.

In standard PC memory architecture, a 64-bit wide memory bus connects to a single memory module. In a traditional DDR5 laptop, achieving full dual-channel performance (a 128-bit aggregate memory bus, or four 32-bit subchannels) required installing two separate physical SO-DIMM modules side-by-side or stacked in a bulky dual-tier socket.

A dual SO-DIMM implementation consumes an enormous amount of physical space:

  • Motherboard Surface Footprint: Two SO-DIMM sockets occupy approximately 3,200 mm2 of motherboard real estate, forcing engineers to shrink battery capacity or displace cooling heatpipes.
  • Z-Height Thickness: A standard stacked dual SO-DIMM socket requires a vertical clearance of 8.5 to 10.5 millimeters, making it physically impossible to deploy in ultra-thin laptops (which target total chassis thicknesses under 15mm).

LPCAMM2 shatters this limitation. A single LPCAMM2 module natively routes a complete 128-bit LPDDR5X bus across its compression pinout. It packages four or eight discrete 16-bit LPDDR5X DRAM dies directly on the module, providing two independent 64-bit channels (Channels A and B, subdivided into four 16-bit subchannels each) operating in perfect parallel synchronization.

The physical footprint of a single LPCAMM2 module is just 1,150 mm2a massive 64% reduction in PCB surface area compared to dual SO-DIMMs. Furthermore, because the module mounts flat via a compression interposer, its total installed Z-height profile is less than 4.5 millimeters (including the module, stiffener, and screw heads). This allows ultra-thin premium laptopssuch as the Lenovo ThinkPad P1 Gen 7 and Dell Precision workstationsto deliver full modularity in chassis that previously required soldered RAM.

4. Power Efficiency and Bandwidth Economics: 153.6 GB/s at 70% Less Standby Power

The performance metrics delivered by LPCAMM2 represent a generational leap over legacy SODIMM memory. Operating over a 128-bit wide bus at 9,600 MT/s, the theoretical memory bandwidth of a single LPCAMM2 module reaches:

Bandwidth = (128 bits / 8) × 9,600 MT/s = 16 Bytes × 9.6 GT/s = 153.6 GB/sec

For context, a dual-channel DDR5-5600 SO-DIMM configuration tops out at 89.6 GB/s. LPCAMM2 delivers a staggering 71% increase in memory bandwidth, providing integrated GPUs (such as Intel Arc Battlemage and AMD RDNA 3.5) and Neural Processing Units (NPUs) with the memory throughput required to run local 7B-parameter AI language models without compute-bound starvation.

Simultaneously, LPCAMM2 dramatically cuts power consumption. Because it harnesses LPDDR5X rather than standard DDR5:

  • Operating Voltage Reduction: Core I/O voltage drops from 1.1V to 1.05V, with internal logic operating at ultra-low 0.5V rails.
  • Deep Low-Power Sleep States: LPDDR5X features advanced low-power self-refresh (LP-SR) and deep power-down modes. When an LPCAMM2 laptop is idling or in Modern Standby, memory power dissipation collapses by up to 70% compared to standard DDR5 SO-DIMMs, directly extending laptop battery life by 1.5 to 2.5 hours.
  • Integrated Thermal Stiffener: At 9,600 MT/s, high-speed memory dies dissipate localized heat fluxes. The monolithic aluminum backing plate on LPCAMM2 acts as an integrated heat spreader, transferring heat away from the DRAM packages and into the chassis thermal manifold, preventing localized thermal throttling during sustained AI inferencing.

5. Comprehensive Architecture & Form Factor Comparison Table

To visualize how LPCAMM2 fundamentally alters mobile computing architecture, review the complete physical, electrical, and performance comparison:

Architecture Metric Standard DDR5 SO-DIMM Soldered LPDDR5X (BGA) LPCAMM2 (LPDDR5X)
Max Data Transfer Rate 5,6006,400 MT/s (Limit) 8,5339,600 MT/s 8,5339,600 MT/s (Full Speed)
Peak Bandwidth (128-Bit) 89.6102.4 GB/s 136.5153.6 GB/s 136.5153.6 GB/s (+71% vs SODIMM)
Motherboard Footprint (128b) ~3,200 mm2 (2x Sockets) ~1,800 mm2 (Fixed Traces) ~1,150 mm2 (-64% Area)
Installed Vertical Height 8.510.5 mm (Thick) < 1.5 mm (Flush BGA) < 4.5 mm (Ultra-Slim)
Connector Interface 262-Pin Card Edge Finger Permanent Solder Balls LGA Compression Interposer
Parasitic Lead Inductance 1.52.8 nH (High Noise) < 0.2 nH (Direct Solder) < 0.4 nH (-80% vs SODIMM)
Standby Power Efficiency Standard (DDR5 Self-Refresh) Optimal (LPDDR5X Deep Sleep) Optimal (-70% Idle Power)
User Upgradeability & Repair 100% Modular 0% (E-Waste / Soldered) 100% Modular (Screw Mounted)

6. Right-to-Repair and the Commercial Future of Modular Memory

The emergence of LPCAMM2 is not merely a triumph of electrical engineering; it is a seismic commercial victory for the circular economy and corporate IT sustainability.

Enterprise fleet managers who purchase tens of thousands of corporate laptops have long despised soldered memory. If a single memory chip suffered a single-bit failure post-warranty, or if an engineering team needed to upgrade their RAM capacity from 32GB to 64GB for local AI workflows, the entire $2,500 motherboard had to be scrapped and replaced.

With the passage of aggressive European Union Right to Repair legislation and mandatory circular economy scoring standards starting in 2025/2026, electronics manufacturers face severe regulatory penalties for deploying unrepairable, planned-obsolescence designs. LPCAMM2 provides laptop OEMs with the perfect engineering escape hatch: they achieve the razor-thin dimensions, lightweight battery life, and 9,600 MT/s bandwidth of soldered LPDDR5X, while satisfying 100% of global modularity and repairability mandates.

As memory producers Micron, Samsung, and SK Hynix scale mass production lines in 2026, LPCAMM2 modules are slated to completely replace SO-DIMMs across commercial enterprise laptops, creative workstations, and gaming notebooks, proving that high performance and user repairability can peacefully coexist.
